芯       片：

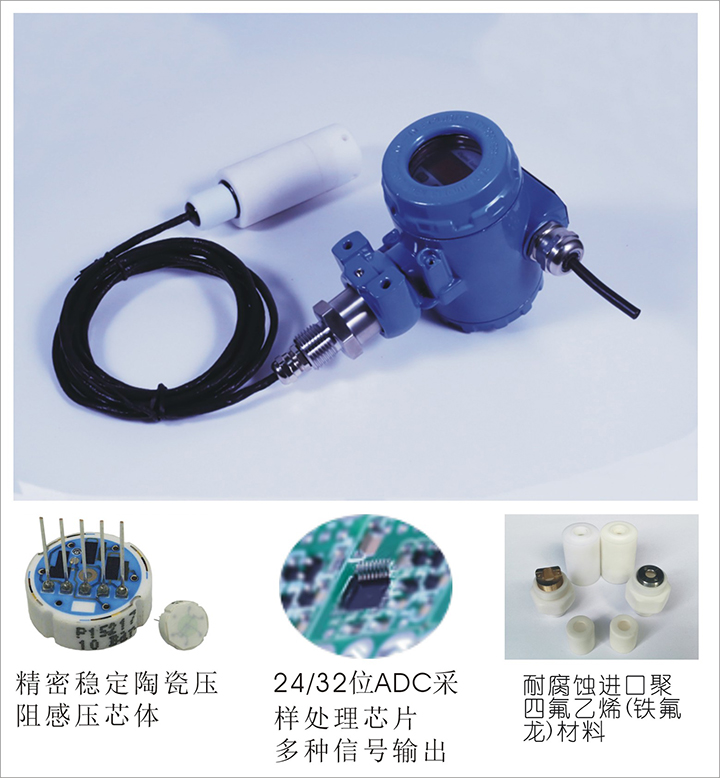

進口陶瓷壓阻芯體；
選進的貼片工藝，具有零點、滿量程補償、溫度補償；
靜壓式液位/水位測量原理；

信號處理及輸出：
24位ADC采樣處理芯片；
DSP數字信號調理算法；
多點性線溫度校準；
電壓電流過載保護；
四位顯示表頭，小數位可調；表頭采樣速率：10次/S

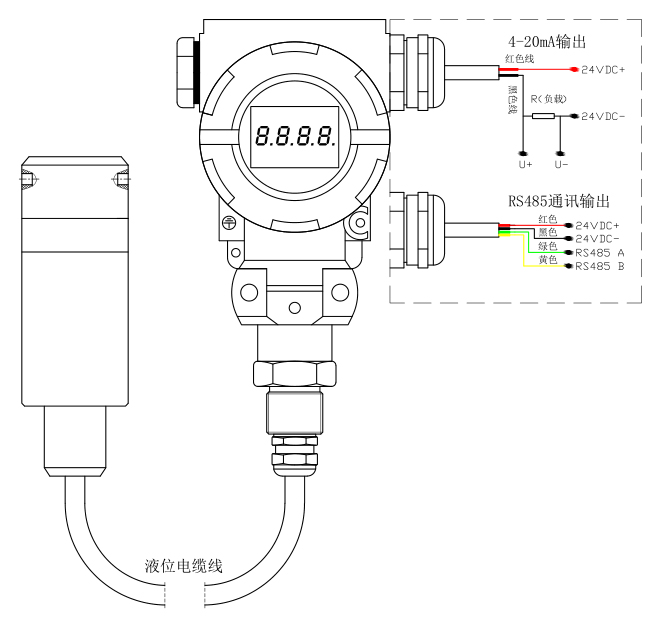

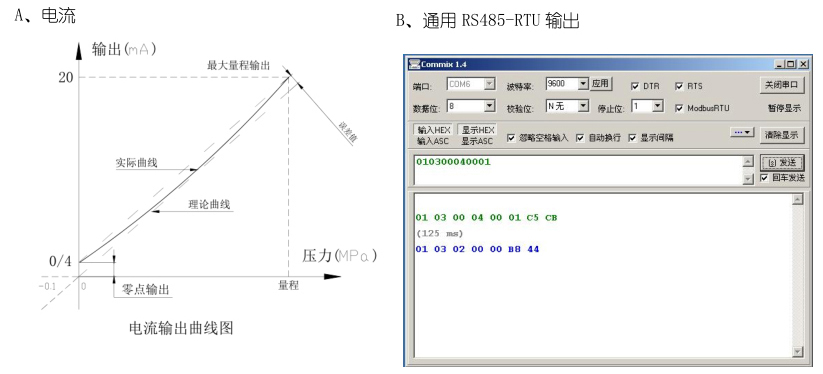

標準工業信號輸出：4-20mA(二線制);

數字通訊信號輸出：RS485-RTU、超低功耗RS485-RTU
采用先進的32bit微處理器和24bit ADC
傳輸協議采用通用的MODBUS-RTU協議
支持波特率：1200~57600bps，校驗位：NONE、ODD、EVEN
支持用戶二次校準、清零、反清零、恢復出廠等操作
支持11種單位切換，支持浮點型、整型、百分比、格式化輸出
采集間隔0~43200秒(12小時)可設，既可連續采集，滿足高速采集的場合，也可單次觸發采集，最大限度降低功耗

結       構：
外殼材料采用耐腐蝕進口聚四氟乙烯(鐵氟龍)材料；
IP68密封防水電氣出線；
專用鐵氟龍液位電纜

應      用：
海水、鹽水的水位測量與監控；
PH值3-11的液位測量與監控；
化工等腐蝕性液體的液位測量與監控；


Chip:
Imported ceramic piezoresistive core body;
The selected mounting process has zero point, full range compensation and temperature compensation;

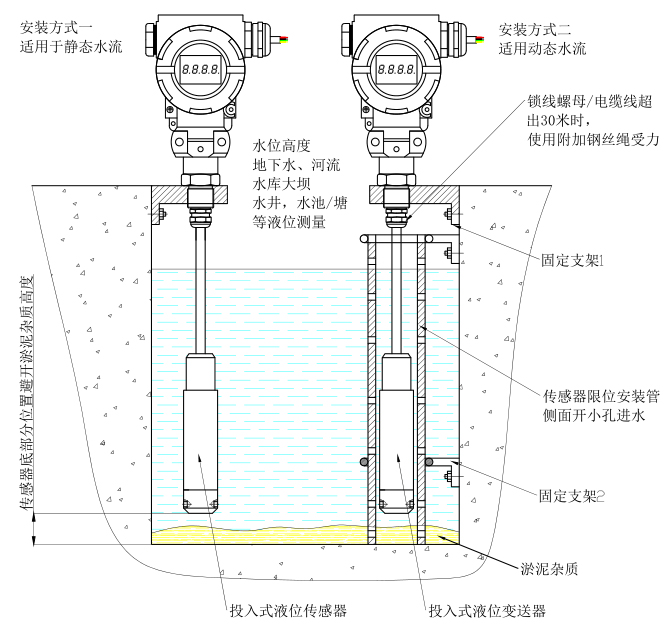

Principle of hydrostatic level / water level measurement;

Signal processing and output:
24 bit ADC sampling and processing chip;
DSP digital signal conditioning algorithm;
Multipoint linear temperature calibration;
Voltage and current overload protection;
Four digit indicator with adjustable decimal; meter sampling rate: 10 times / s
Standard industrial signal output: 4-20mA (two-wire system);

Digital communication signal output: rs485-rtu, ultra-low power rs485-rtu
Advanced 32 bit microprocessor and 24 bit ADC are adopted
The transmission protocol is MODBUS-RTU
Support baud rate: 1200 ~ 57600bps, check bits: none, odd, even
Support the user's secondary calibration, reset, anti reset, restore factory operations
Support 11 kinds of units switching, support floating point, integer, percentage, formatted output
The acquisition interval of 0 ~ 43200 seconds (12 hours) can be set, which can not only meet the needs of high-speed acquisition, but also trigger acquisition once to minimize power consumption

Structure:
The shell material is made of corrosion-resistant imported polytetrafluoroethylene (Teflon);
IP68 sealed waterproof electrical outlet;
Special Teflon liquid level cable

Application:
Water level measurement and monitoring of seawater and brine;
Liquid level measurement and monitoring of pH value 3-11;
Liquid level measurement and monitoring of chemical and other corrosive liquids;
